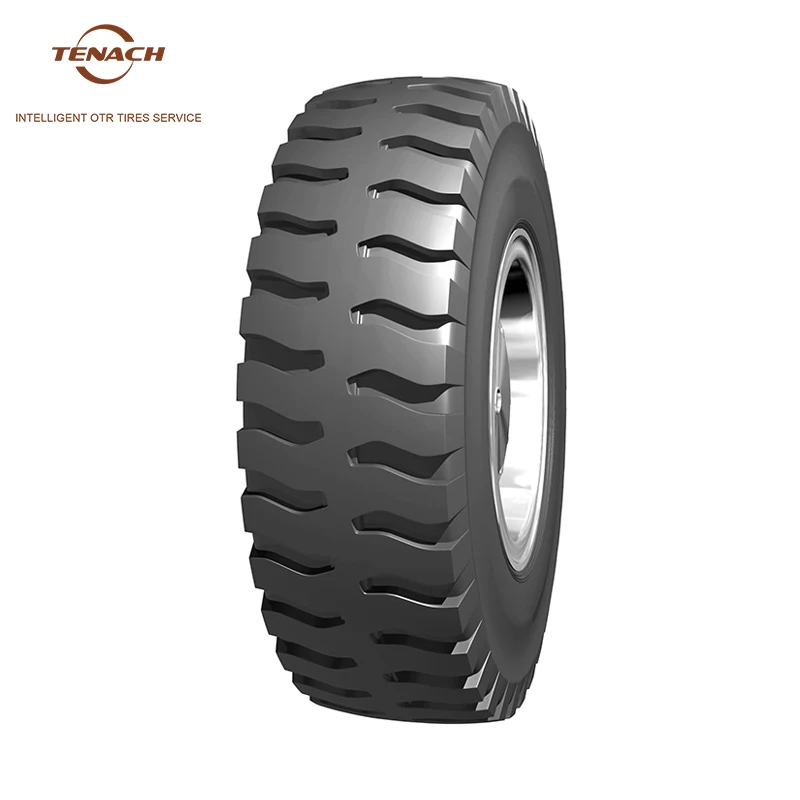

A Grade Rating Quality All Steel Radial Dumper Truck Pnues

TENACH is an OTR operating company integrating R&D, manufacturing and sales. Relying on India’s advanced engineering tire technology, strict process control, and reliable A Grade Rating Quality All Steel Radial Dumper Truck Pnues quality, TENACH brand A grade rating quality E-4 dumper truck pnues has been recognized by internationally renowned customers and mining groups.
pattern number:THRDT2

Send Inquiry

Product Description

In cooperation with our self-developed and continuously updated DTIS-Digital Tires Intelligent System,we will realize real-time monitoring and management of engineering vehicles and OTR in operation,and upload the tire pressure,tire temperature,working hours,remaining working hours,GPS information,TKPH,CPH and full tire life cycle management information to PC and mobile terminals in real time,in order to realize the all-round intelligent TENACH brand A grade rating quality E-4 dumper truck pnues upgrade.

A Grade Rating Quality All Steel Radial Dumper Truck Pnues Parameter (Specification)

SIZE	STAR RATING	TYPE	TRA CODE	STANDARD RIM	TREAD DEPTH (mm)	LOAD INDEX	SECTION WIDTH (mm)	OVERALL DIAMETER (mm)	MAX LOAD AND INELATION PRESSURE(kg/kpa) TRA
SIZE	STAR RATING	TYPE	TRA CODE	STANDARD RIM	TREAD DEPTH (mm)	LOAD INDEX	SECTION WIDTH (mm)	OVERALL DIAMETER (mm)	50KM/H	10KM/H
18.00R33	★★	TL	E-4	13.00/2.5	49	191B	500	1875	10900/700
18.00R33	★★★	TL	E=4	13.00/2.5	49	196B	500	1875	12500/900
21.00R35	★★	TL	E-4	15.00/3.0	53	201B	555	2040	14500/700
24.00R35	★★	TL	E-4	17.00/3.5	58	209B	655	2175	18500/700
24.00R35	★★★	TL	E-4	17.00/3.5	58	214B	655	2175	21200/900

A Grade Rating Quality All Steel Radial Dumper Truck Pnues Feature And Application

Tenach brand A grade rating quality E-4 dumper truck pnues with deep tread designed for severe and rocky surfaces.

Used for underground mining,open pits and quarries.

Specially designed sidewall provides extended protection from cutting.

Excellent combination of traction,stability and comfortable ride.

Type R1: Standard Compound

Type R1C: Standard Compound & Cutting Resistance

Type H1: High Speed & Heat Resistance

Type H2: Heat Resistance

Type C1: Cutting Resistance

Type C2: Super Cutting Resistance

Snowfield: Specific Compound for Snowing

Port: Specific Compound for Port

Product Details

Tenach brand A grade rating quality E-4 dumper truck pnues are equipped with advanced manufacturing equipment from smelting, extrusion, cutting, molding and vulcanization. Various raw materials such as rubber, steel wire and carbon black are purchased only from top suppliers, which effectively guarantees the stable quality of the products.
